Overview
Propulsion and thruster systems demand high-current power delivery alongside precise control signaling, all within a wet, corrosive engine room and stern-tube environment.
Design & Construction
High-Current Propulsion Power Cable
Heavy-gauge, tinned-copper conductors deliver sustained high-current power to main propulsion motors and bow/stern thruster units without excessive voltage drop.
Sealed Control & Feedback Wiring

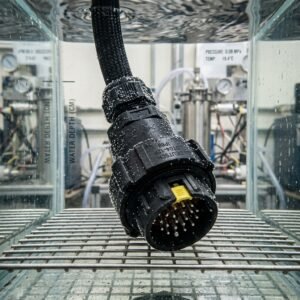

IP68-sealed control cabling carries throttle, steering, and position feedback signals between the bridge and propulsion machinery spaces.
Manufacturing Process
Built under ISO 9001 process controls with 100% continuity and current-load testing, supporting propulsion system integrators across commercial and leisure marine platforms.
Typical Applications
- Main propulsion motor power cabling
- Bow and stern thruster wiring
- Throttle and steering control harnesses
- Shaft position feedback wiring
- Propulsion control panel interconnects
Common installations include Main propulsion motor power cabling, Bow and stern thruster wiring, and Throttle and steering control harnesses, where corrosion resistance and sealed, submersible-rated protection against saltwater exposure are the primary design drivers. The same base design can also be adapted for Shaft position feedback wiring and Propulsion control panel interconnects with minor changes to connector type or cable length.
Technical Specifications
Standard configurations are available with the following technical specifications; custom configurations outside these ranges can be discussed with our engineering team. Wire Gauge: AWG 12 – 2. Conductor Count: 2 – 20 circuits. Insulation: Tinned-copper, moisture-resistant jacketing. Temp Range: -30°C to +105°C. Sealing: IP68 sealed connectors. Voltage Rating: 24V / 48V DC and 3-phase AC systems. Current Capacity: Up to 150A continuous.
Quality & Certification
Manufactured under ISO 9001 certification with DNV GL-approved cable constructions available for classification society propulsion system programs.
Customization & Lead Time
Standard lead time for the Marine Propulsion & Thruster Control Cable Assemblies is 4–6 weeks prototype, 2–3 weeks production reorder. Connector type, cable length, and conductor configuration can be customized to match your exact application, including connector sealing rating, cable length, and shielding to match your vessel’s specific installation requirements. Contact our engineering team with your drawings or requirements for a project-specific quote.
Why XinHarness
Propulsion and thruster cabling shares the same corrosion-resistant materials and high-current testing standards used across our engine room power programs. See the Marine industry page, or request a quote for your project. For related technical background, see our article on how to select the right connectors for waterproof applications.
Frequently Asked Questions
Yes, marine assemblies including the Marine Propulsion & Thruster Control Cable Assemblies are built using corrosion-resistant materials and can be configured with IP67/IP68-rated waterproof connectors.
Our marine cable assemblies are manufactured under ISO 9001 quality management and can be built to relevant marine industry standards on request.
Yes, we regularly customize connector types, cable lengths, and routing configurations to match specific vessel layouts and equipment.
