Overview
Control panel and field-device wiring for automation systems needs consistent labeling, oil- and abrasion-resistant jacketing, and connectors that hold up to routine panel maintenance. This line builds that cabling for machine builders and automation integrators.
Design & Construction
Panel & Field Wiring
Conductors run AWG 22 to AWG 10 with PVC or PUR insulation resistant to common shop-floor oils and coolants, printed with circuit numbers matching the customer’s panel drawing for fast field troubleshooting.
Shielded & Sensor Cabling
Shielded cable is used for PLC I/O and sensor runs where noise immunity matters, with IP67-rated field-side connectors for wash-down or dusty factory-floor environments.

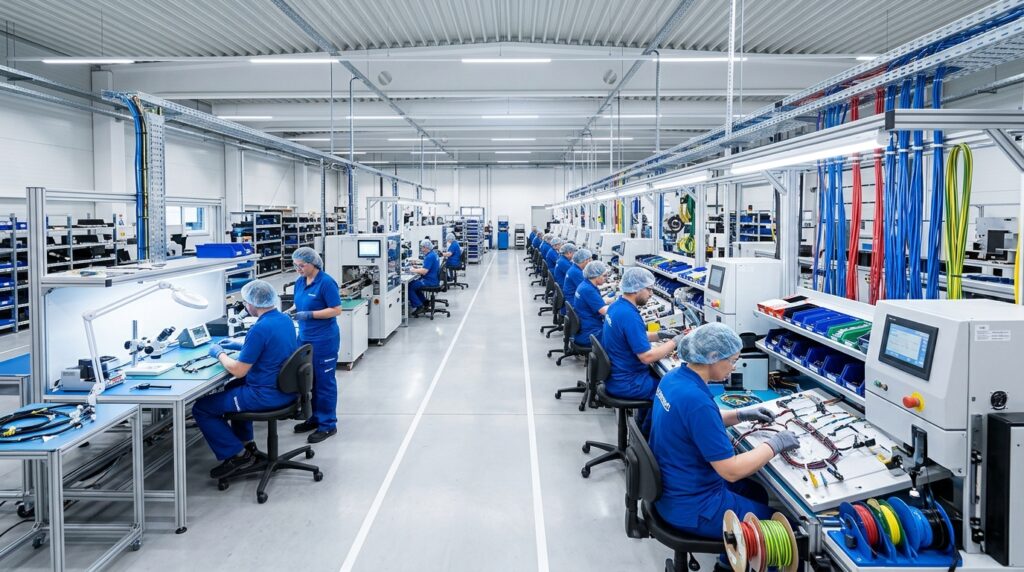

Manufacturing Process
Assemblies are built under our ISO 9001 quality system with UL Recognized component construction, and 100% electrical testing on every production run before packing.
Typical Applications
- PLC and control panel wiring
- Sensor and actuator field cabling
- Motor control center interconnects
- Factory floor power distribution
- HMI and control desk cabling
Common installations include PLC and control panel wiring, Sensor and actuator field cabling, and Motor control center interconnects, where chemical and abrasion resistance for continuous duty in plant-floor conditions are the primary design drivers. The same base design can also be adapted for Factory floor power distribution and HMI and control desk cabling with minor changes to connector type or cable length.
Technical Specifications
Standard configurations are available with the following technical specifications; custom configurations outside these ranges can be discussed with our engineering team. Wire Gauge: AWG 22 – 10. Conductor Count: 2 – 60 circuits, shielded/unshielded. Insulation: PVC/PUR, oil and abrasion resistant. Temp Range: -20°C to +105°C. IP Rating: IP67 (field-side connectors). Flex Rating: Static and low-flex duty cycles. Standard: UL Recognized component construction.
Quality & Certification
Manufactured under ISO 9001:2015 certification with UL Recognized component construction, CE marking, and IP67-IP68 rated connector options for field-side installations.
Customization & Lead Time
Standard lead time for the Industrial Automation Control Cable Assemblies is 4–5 weeks prototype, 2–3 weeks production. Connector type, cable length, and conductor configuration can be customized to match your exact application, including connector type, cable length, and environmental sealing to match your specific machine or enclosure design. Contact our engineering team with your drawings or requirements for a project-specific quote.
Why XinHarness
We partner with machine builders and automation integrators to deliver harnesses backed by 100% electrical testing on every run, the same process discipline we apply across our industrial production. See the Industrial industry page, or request a quote for your project. For related technical background, see our article on the role of relays and fuses in complex wiring harness systems.
Frequently Asked Questions
Depending on configuration, our industrial harnesses support IP66/IP67-rated connectors, oil- and chemical-resistant jacketing, and extended temperature ranges for demanding plant-floor environments.
Yes, length, connector type, and wire gauge are fully customizable to match your equipment’s exact requirements.
Our industrial cable assemblies are manufactured under ISO 9001 quality management, with UL-recognized materials available on request.
